Hello,

here some more facts about the Multi Fuel Burner MB 10/18.



The burner was built in the 80ies of last century by WEBASTO for field kitchens and manual operating. Its maximal output is 30.000 kcal (34,9 kWh), so one suits for small steam plants up to 3,5 kW (4,75 Hp) (10% thermal efficiency). It is a pressureless one.

There is the outer casing and the inner burner unit with the vaporising pipes and two separate adjustable burners and a thermoelectric flame control.

Burner Unit - side view.
Mixing tube in forward position - burning Diesel, Paraffin and so one

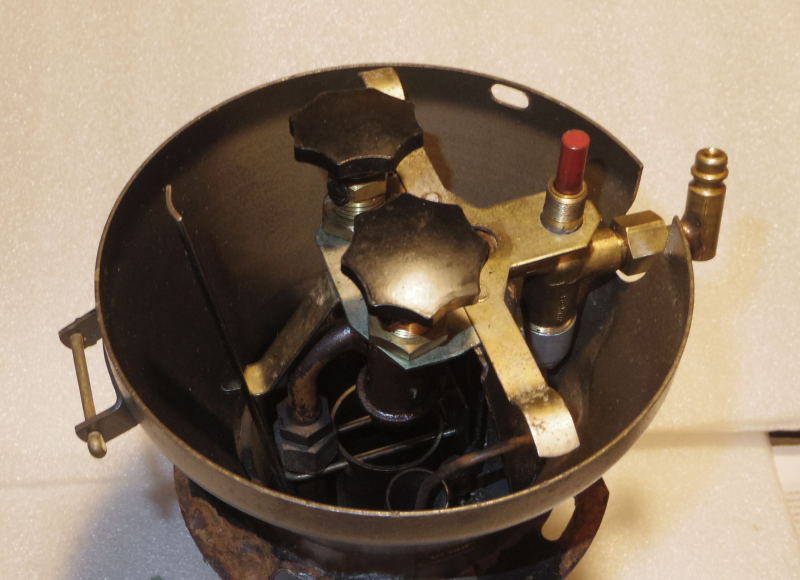

Burner Unit - view from behind
two separate burner control valves
red button - thermo-electric control valve


Mixing tube in rear position - burning gasoline, kerosene


To be continued.

[dampfspieler]

Here two sketches of the burner.


The shown dimensions are millmeter.

MB1018 dimension


[Lopez Mike]

That is a beautiful design. Much credit to German engineering!

Do you know if it can be started with motor fuel (deisel) or must it be started with gasoline or something else?

Also whether it can be turned down to low output for slow running?

Danke,

[cyberbadger]

Very cool!

But, why didn't they make it 6,25HP instead?

I keep toying with the idea of making something like this burner, or they had one in a recent Funnel Issue that just sat on the grates.

Most know, I designed Nyitra to be crewed by 2. But I have found myself alone sometimes, and something like this burner for Kerosene, Diesel, or propane would really make it more manageable.

Also would make it a heck of a lot easier to move and process the fuel....

-CB

[dampfspieler]

Hello Mike,

Do you know if it can be started with motor fuel (deisel) or must it be started with gasoline or something else?

it can be started with both fuels. The lighting procedure is a bit different and the mixing tube (see picture above) is set to the right position. I will test it and show the results.

Also whether it can be turned down to low output for slow running?

Yes, the two burners in the unit can be regulated independent from each other so you can find the right resulting flame size.

Dietrich

[Lionel Connell]

Dietrich,

Is this burner something that we can still buy?

Cheers


Lionel

[dampfspieler]

Lionel,

Is this burner something that we can still buy?

yes you can.

Cheers
Dietrich

[cyberbadger]

https://www.feldkueche-gulaschkanone.de ... enbrenner/
170 british pounds.

-CB

[dampfspieler]

Hi Bart,

... 170 british pounds.

you are wrong. The price there is 170,50 €, that are today (25.02.2018) 150,62 GBP or 210,15 USD (Deutsche Bank Devisenrechner).

Cheers
Dietrich

[cyberbadger]

I can't believe I mistook the euro symbol for the pound symbol.

Must be freudian slip related to brexit....

-CB
