Stuart No. 6 schematics from Steamboats and Modern Steam...

[Pitchfire]

My copy of "Steamboats and Modern Steam Launches" is bound wonky such that pg. 18-19 of the July-August 1961 section which contains the "Stuart No.6 High Speed Compound 2.5"&4"x3" Revolutions 750 per minute" are obscured in the center margin. Anybody have a copy that can check and see if there's is clear and take a picture or scan it such that I can make out the details?

[87gn@tahoe]

I tried to scan mine but my scanner was too small. Sorry

[Pitchfire]

No sweat. Thanks for trying.

[Oilking]

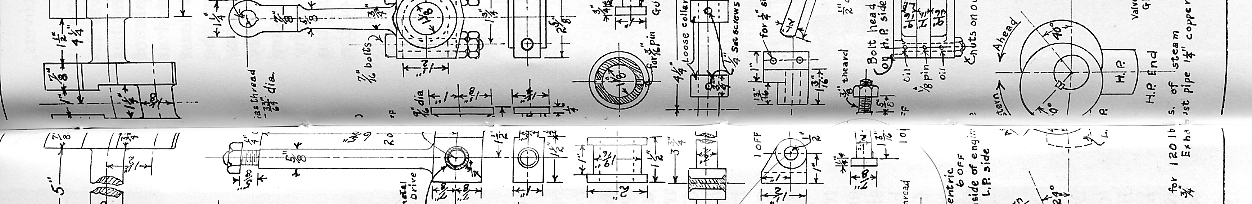

I was able to scan only the area in question since scanning the whole page with acceptable detail made the file to large to attach. If this dosen't we can try direct emails.

Dave

[Chris W]

I have a set of prints for a 6A, are they the same?

[Pitchfire]

Many thanks!
